Moving machines can sometimes be inconvenient, and it can be tempting to put it off. However, delaying moves can result in cranes remaining in underperforming sites for too long, reducing your overall income.

Recommended Moving Methods

• When moving multiple cranes, we typically use a trailer (such as a furniture mover) and transport machines in an upright position.

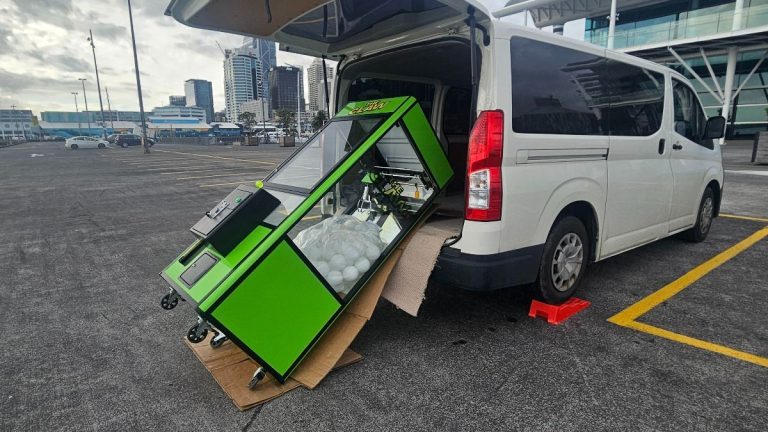

• For single cranes, we often lay them down in the back of a van. A flatbed trailer can also be used for single-machine moves.

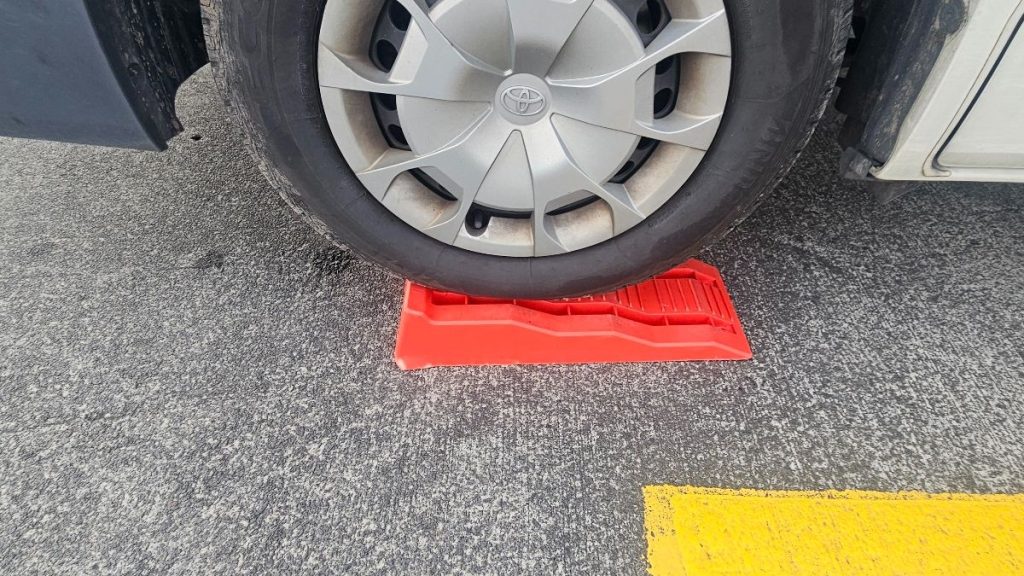

One method that has made moving single cranes significantly easier is the use of heavy-duty plastic vehicle ramps on the rear wheels of the crane.
These ramps raise the height of the van’s rear door and provide a better pivot point when lifting and sliding the crane into the vehicle.

We also recommend:

• Placing cardboard on the ground to protect the paintwork on the bottom steel edge of the machine

• Covering the tow ball with a folded blanket and a flap of carpet to prevent damage

• Aligning and locking the rear wheels to face outward so the crane does not roll away when tilting it back out of the vehicle

Heavy-duty ramps are available from retailers such as Supercheap Auto and Marine Deals.

Important Safety Points

Moving cranes carries a real risk of injury.

• Only attempt moves if you are physically capable and confident in the task.

• If there is any doubt about your ability, the weight of the machine, or the environment, do not attempt the move alone.

• If moving a crane horizontally, this should be a two-person lift.

• When wheeling a crane with two people, have one person pushing and one acting as a safety stop on the opposite side.

• If a wheel hits a pothole or obstruction, the machine can tip and cause injury or damage.

• Avoid pushing from the very top of the crane. Push lower down to reduce the centre of gravity.

• On uneven ground, it is generally safer to pull rather than push.

• If a machine needs to pass under a low doorway, load it onto a standard delivery trolley and use a minimum of two people to tilt it under.

• Once loaded into a vehicle or trailer, secure the machine with appropriate tie-down straps.

Safety first.
If you have any concerns at any point, stop. The inconvenience of postponing a move is minor compared to the risk of injury to yourself, others, or damage to property or equipment.
